TPO Roofing

A Complete Guide

TPO Roofing Systems Up CloseLet’s talk about TPO roofing systems.

For commercial buildings with a low-slope or flat roof, a TPO roof is one of the most popular systems.

Why?

One reason is cost, but it doesn’t stop there.

There are several other reasons you may want to invest in a TPO roofing system.

In this TPO roofing guide ››

You’re going to learn everything you need to know about TPO roofing, so you can make an educated decision about your next roofing project.

Table of Contents

1

TPO ROOFING
INTRODUCTION

2

TPO ROOFING
PROJECTS

3

TPO ROOFING
RESOURCES

TPO Roofing Introduction

What is TPO Roofing?

TPO stands for Thermoplastic Polyolefin. A TPO roof system consists of a single-ply roofing membrane, supported by a properly installed solid substrate – often an engineered insulation system – on flat or low sloping roofs.

The TPO roof membrane comes in different thicknesses – commonly 40-mil to 80-mils or thicker.

And quality varies widely by manufacturer.

The membrane is attached to the roof by mechanical fasteners, adhesives and various methods of heat welding to form watertight seams and seals around roof edges and penetrations.

As is the goal with most roofing systems, TPO roofing systems form an effective barrier designed to repel water, snow and ice.

To keep your building and its contents safe and dry.

While your TPO roofing system may have unique design requirements, the graphic below shows one common type of install.

TPO Roofing System Details

Image Credit: Versico Roofing Systems

Fully Adhered TPO System

  1. TPO Membrane
  2. Bonding Adhesive
  3. Fasteners & Plates
  4. Insulation System
  5. Roof Deck

TPO Roof Membrane Details

You may be wondering…

What is TPO roofing material made of?

The single-ply TPO roof membrane actually consists of at least three layers, bonded together to create a single membrane.

Thermoplastic Polyolefins (TPOs) are polypropelene based materials that have been modified to provide better tension strength, flexibility and impact resistance, while retaining the chemical resistance of PP products.

While TPO membranes contain thermoplastics, they may also contain EPR or EPDM rubber and other compounds (depending on formulation) like talc, fiberglass or carbon fiber to amplify durability and effectiveness.

TPO membrane formulation include things like: pigments, fire retardants, antioxidants, lubricants and UV absorbers – all designed to enhance performance.

A single-ply re-inforced TPO roof membrane contains the following layers:

  • A top layer formulated with UV blockers and abrasion resistant compounds
  • An encapsulated middle layer called “scrim” which is a high-strength polyester mesh material designed to add structure to the membrane, while increasing puncture resistance and tensile strength
  • A base layer compounded for strength, adhesion and flexibility

Some TPO membranes also include a fleece backing that is used for certain installation requirements.

TPO Roofing Manufactures

High-quality TPO roofing systems are offered by industry-leading manufacturers. Here are a few of the top companies offering TPO roofing systems. Your professional roofing contractor can help you determine which system best fits your needs.

GAF Certified Roofer Firestone Building Products Roofing Products Johns Mansfield Roofing Products Carlisle Syntec Roofing Products Versico Certified Installer

TPO Roofing Warranties

GUARANTEED BY THE MANUFACTURER

As a Certified Roofing Contractor for GAF and Versico systems, RestoreMasters offers Leak-Free NDL Warranties up to 30 years.

What is an NDL Warranty? An NDL (No-Dollar Limit) Warranty is a warranty guaranteed by the roof system manufacturer – protecting the building owner against roof leaks caused by defects in materials or contractor workmanship. One of the best roof warranties available, as with all manufacturer warranties, certain terms & restrictions apply.

Benefits of a TPO Roof

A TPO roof offers substantial benefits over other roofing systems in key areas.

Here are a few benefits of a TPO roofing system:

Puncture Resistance

Punctures can lead to leaks. TPO offers increased puncture resistance over other commonly used roofing materials. The quality of substrate design and installation techniques can play a big role in puncture resistance, so be sure to choose a first-rate roofing contractor.

Energy Efficiency

Reflective TPO roof membranes come in white and other light colors and can help save money on energy costs compared to dark-colored EPDM. Some buildings see a dramatic drop in heat absorption when using a light-colored TPO roof.

Value & Cost-effectiveness

TPO roofing systems offer one of the most cost-effective roofing solutions available, offering a great balance between performance and price. Flexibility of materials and faster installation delivers a lower cost install.

Long-term Weather Resistance

TPO offers superior resistance to long-term heat and damaging UV rays from the sun. TPO resists shrinking so seams and sealants stay in place over time.

Welded Seam Strength

A weather-tight roofing system depends on the strength of its seams. Welded seams as part of a professionally-installed TPO roof system, create a monolithic membrane across your entire roof.

TPO Roof Installation

Watch this video to learn more about TPO roof installation.

TPO Roofing Projects

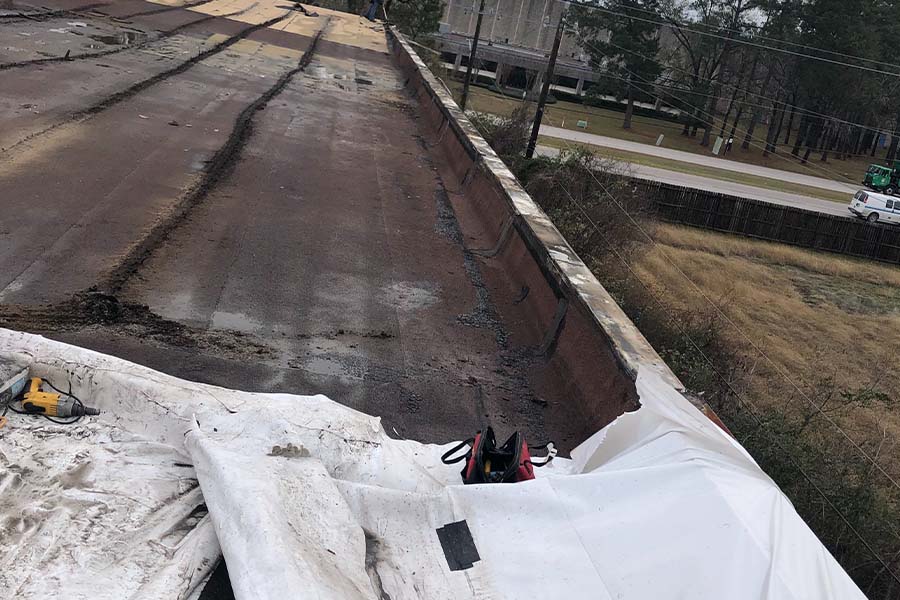

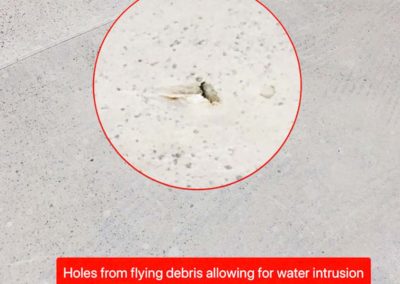

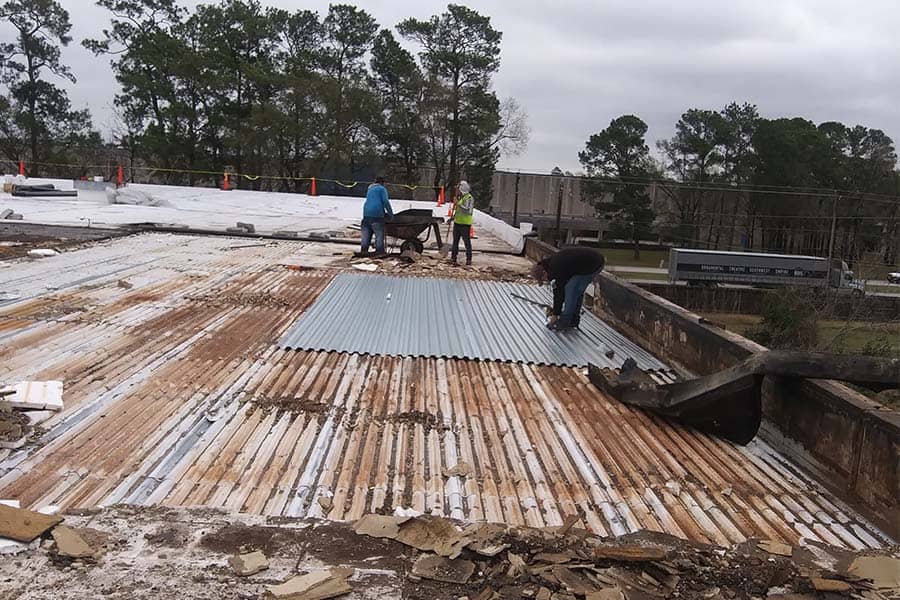

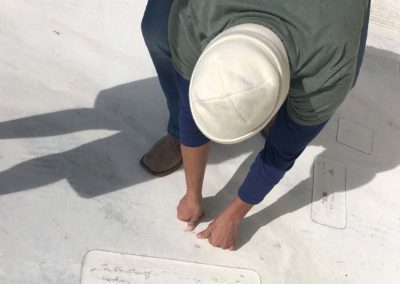

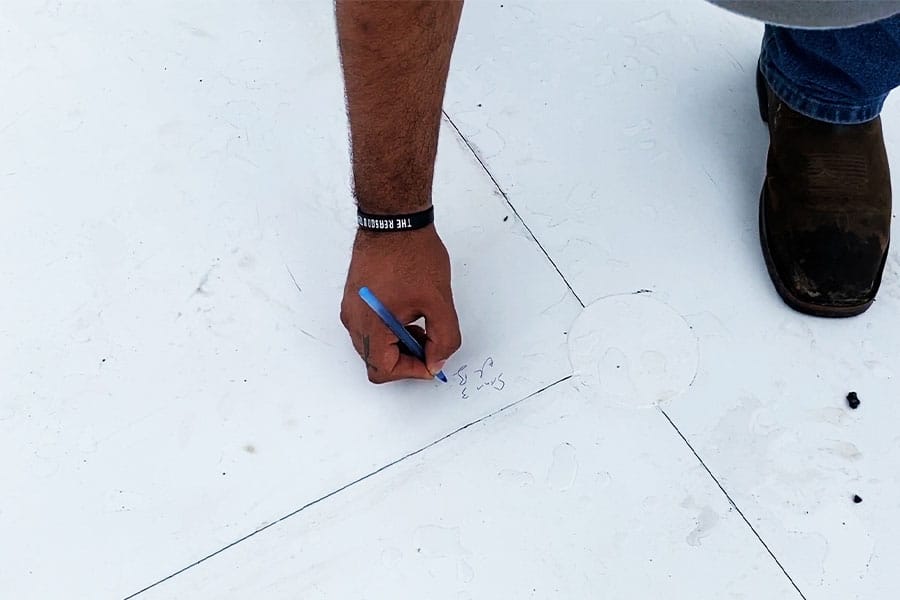

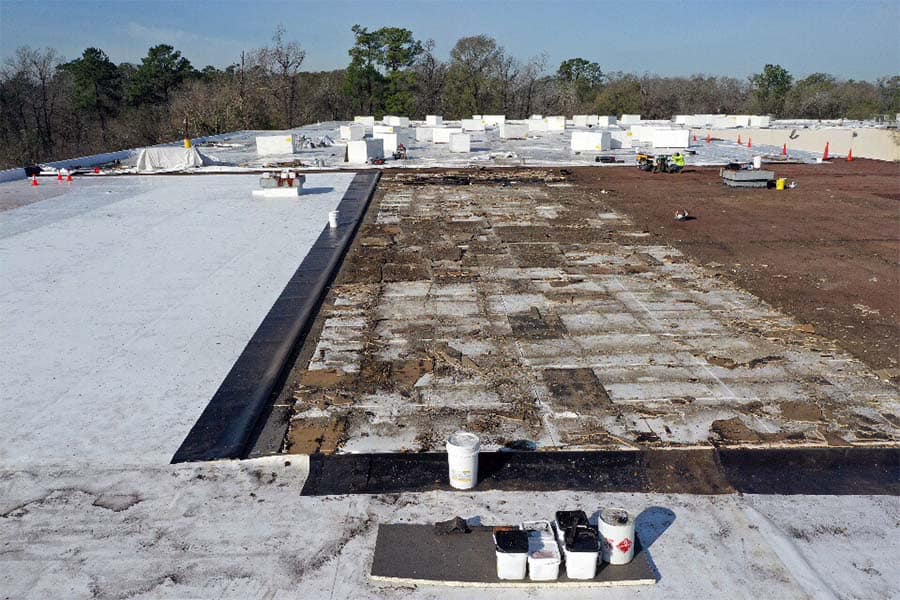

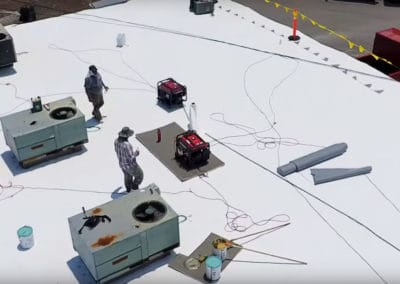

The photos and videos below show TPO roofing projects in various stages of construction. Each project was completed by RestoreMasters.

TPO Roofing Photos

Call now for emergency services

Call → 800-277-6815

Request an Inspection

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

TPO Project Videos

Hillman Square Center – Jacksonville, FL

TPO Roofing Resources

Below are links to several other resources around the topic of TPO roofing systems. If you have any specific questions, please don’t hesitate to reach out to our team.

TPO Roofing Systems

We hope you enjoyed this TPO Roofing guide!

If the answer is YES ›› do us a favor and share this guide with your friends and colleagues on social media. Thank you! 🙂

If you have a website ›› feel free to use our photos or share snippets of the article. We just ask that you provide a link back to this post as a thank you.

We appreciate you!
